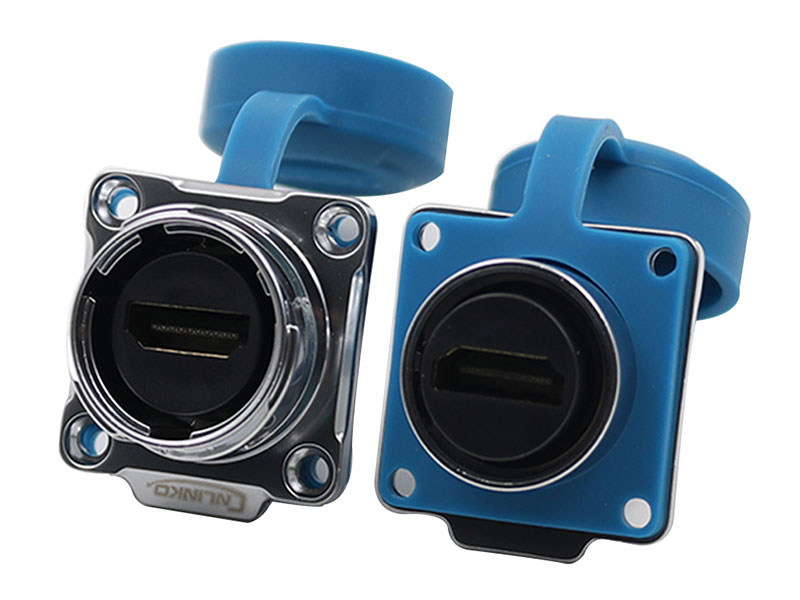

HDMI Connector for Ceiling Service Panel

HDMI Connector for Ceiling Service Panel
HDMI Connector for Ceiling Service Panel
    1. Model
    2. HDMI12.0

  • Parameters

    HDMI2.0 MaleHDMI2.0 FemaleUSB2.0 Female
    Rated Current0.5A0.5A1.5 A
    Operating Voltage30V30V30V
    Withstand Voltage500V500V500V
    Contact Resistance<30.0mΩ <30.0mΩ <30.0mΩ
    Mechanical Endurance500 Times
    Operating Temperature-40oC〜+80oC
    Vibrationfrequency: 5〜200Hz, amplitude:5mm, speed:10m/s,0.1Ous No instantaneous break
    Impact resistance294m/s^2
    Salt Spray PH6.5-7.2, NaCl, 5%48H
    Adapt OD (Signal) φ5mm-φ6.5mm
    IP Rating IP67 (connected）
    Standard Conform to TUV and UL standards
