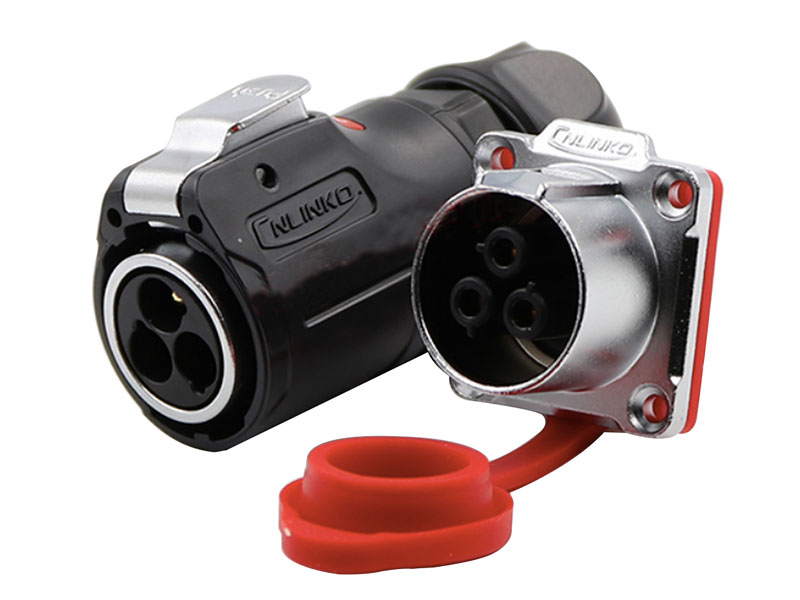

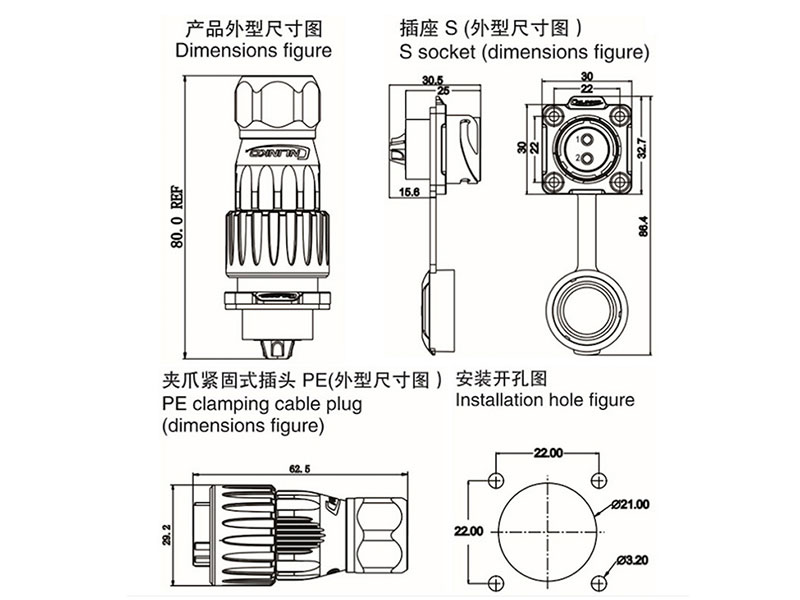

Power Connector for Ceiling Service Panel

Parameters

	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin	12 Pin
Cable Length	2.5mm²~4mm²			1.Omm²~1.5mm²		0.15mm²~0. 2mm²
Cable Diameter	φ8mm~φ12mm			φ7mm~φ9mm		φ5. 5mm~φ7mm
Rated Current	20A			12A		5A
Temperature Rise	25A... under 40℃, 30A... under 50℃			15A....under 40℃, 20A.... under 50℃
Contact Diameter×Qty	φ2.7X2	φ2.7X3	φ2.7X4	φ1.8X5	φ1.8X7	φ1.0X9	φ1.0X12
Operating Voltage (AC.V.rms)	500V			500V		400V
Withstand Voltage (AC.V)1min	2500V			2500V		1500V
Contact Resistance	< 1mΩ			< 2.5mΩ		< 5mΩ
Insulation Resistance	>500MΩ
IP Rating	IP67
Durability	≥500 mating&unmating cycles
Operating Temperature	-40℃ 〜80℃
Connecting Mode	1/4 fast locking connecting
Method of Connecting Cable	Solder
Material
Insulated parts	High performance engineering plastics
Pin	Copper alloy (gold-plated: 4〃)			Copper alloy (gold-plated: 2〃)
Hardware metal	Zinc alloy
Sealing	Silica gel
Prevent the Combustion Level	UL94-V0
