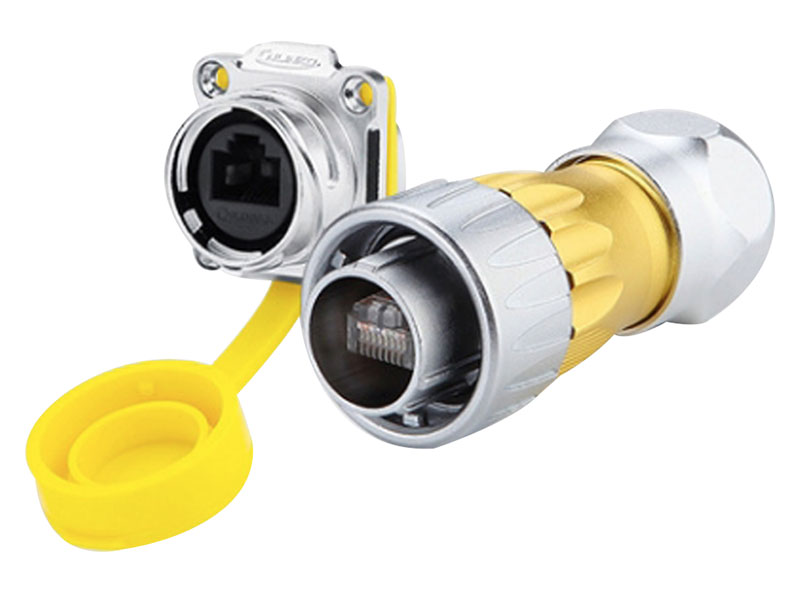

Ethernet Connector for Ceiling Service Panel

Ethernet Connector for Ceiling Service Panel
Ethernet Connector for Ceiling Service Panel

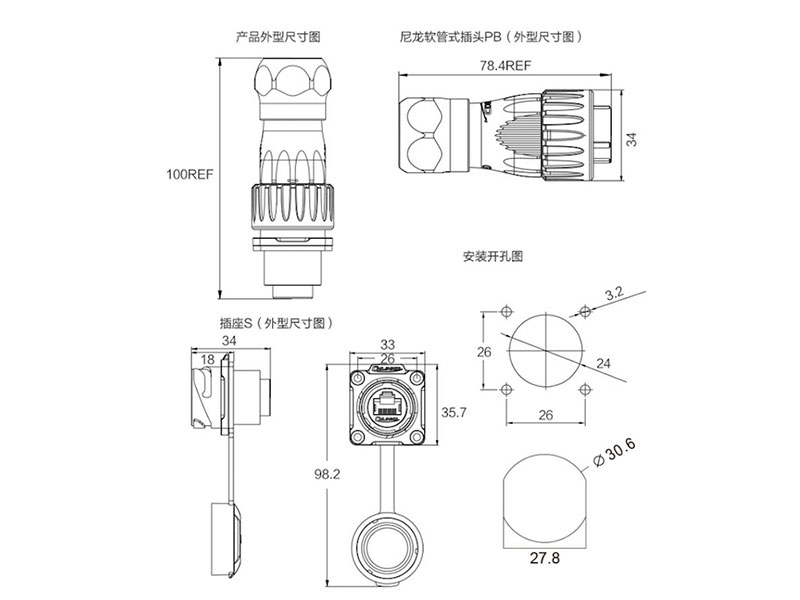

    1. Model
    2. RJ45

  • Parameters

    Cable: 0.15mm²~0.2mm²/26-24AWG Contact Diameter: φ5.5mm〜φ7mm
    IP Rating: IP67 Durability: ≥500 mating&unmating cycles
    Number of contacts: 8PIN Rated current: 1.5A
    Contact resistance: <30mΩ Insulation resistance:> 500MΩ
    Operating Temperature: -40℃~80℃ Connecting Mode: 1/4 fast locking connecting
    Way of Connecting Cable: Solder Withstand Voltage (AC.V): 1000V
    Material
    Insulated parts: High performance engineering plastics Hardware metal: Zinc alloy
    Sealing: Silica gel Pin: Copper alloy (gold-plated) Prevent the Combustion Level: UL94-V0
    1. Application
      1. Installed on the ceiling service panel
